FLIR MR160

$719.00

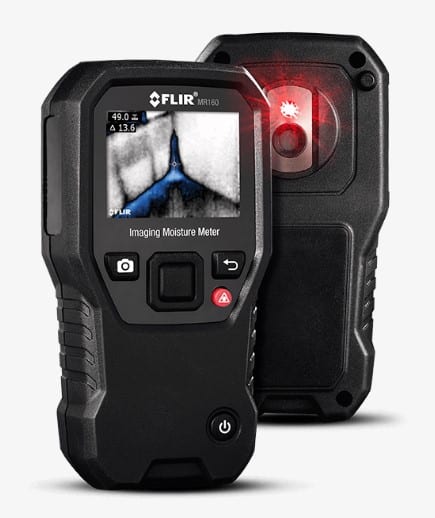

FLIR MR160™ Imaging Moisture Meter With IGM™

Excellent thermal imager and moisture meter in one tool for a very affordable price! Both pin and pinless measurement capable in a rugged industrial strength case for years of reliable use.

FINANCING OPTIONS
Categories: , SKU: MR160

Description

The FLIR MR160 is a first of its kind instrument. It features what is called the IGM Technology (Infrared Guided Measurement). This allows you to scan a wall, floor or ceiling and see the area(s) most affected my moisture. Then you can use either the integrated pinless sensor or the pin probe, depending on if you want non-intrusive or intrusive readings.

The FLIR MR160 is the perfect compliment to a high-resolution thermal camera, or able to stand on its own two feet. This is the perfect go-to tool for mold remediation experts, construction professionals and home inspectors. Save yourself time and money by going right to the problem areas first.

First-ever thermal imaging moisture meter

  • 80 x 60 Lepton thermal imager with IGM technology
  • Document thermal images and moisture readings on one screen
  • Review images and generate reports with free FLIR Tools software
  • Troubleshot quickly.
  • Easily investigate insulation and moisture issues
  • Pinless technology for fast non-contact measurements
  • External pin probe included for contact moisture measurements
  • Easy targeting with laser pointer and display cross-hairs
  • Portable, tough and durable.
  • Industry-leading warranty
  • Small form factor to conveniently carry with you
  • Internal rechargeable battery with USB

FLIR MR160 SPECIFICATIONS

Model Number MR160
Thermal Imaging
Thermal Imaging Detector FLIR Lepton microbolometer
Image Calibration Automatic
Thermal Image Resolution 4800 pixels (80 × 60)
Spectral Response 8–14 μm
Field of View 51° × 38°
Thermal Sensitivity < 0.15 °C
Image Frame Rate 9 Hz
Image Display Color Moisture Alert
Minimum Focus Distance 10 cm (4”)



General information
Display type: 320 x 240 pixel 2.3 inch 64K color TFT graphical display
Display resolution: QVGA (320 x 240)
Saved Image File format: BMP with measurement values overlaid Stored image capacity, 9999 images
Laser Orientation: Single laser pointer to center of thermal image
Power requirements: Integrated rechargable battery
Continuous Run Time: 18 hours max
Battery Power – Typical Usage: 4 work weeks
Battery: 3.7 V, 3000mAh (2 x 1500mAh Li-ion rechargeable batteries) rechargeable via micro USB

Certification standards
EN61326 (EMC), EN61010 (Battery + Charger), EN60825-1 Class 2 (Laser)
Agency approvals
FCC Class B, CE, UL
Available Accessories
MR10 Protective Case
MR05 Impact Pin Probe

Datasheet
