Description
NEW FLIR E96 replaces FLIR E95 with over 52% increase in resolution!
Interchangeable AutoCal™ lenses offer complete coverage of near and distant targets, with the laser distance meter ensuring the crisp focus needed for accurate temperature measurement. Onboard FLIR Inspection Route feature runs pre-planned survey routes to help inspectors stay organized when surveying large or multiple locations.
TOOLS THAT MAKE WORK EASIER
From the logical on-screen navigation and folder structure to Wi-Fi connectivity that makes uploading and sharing a breeze, the Exx-Series has the tools that make your work day easier.
WIDE TEMPERATURE RANGES
The E96 offers several wide temperature ranges, up to 1500°C (2732°F), for steel mills, furnaces and other applications that require accurate measurement of high temperatures.
INTELLIGENT AUTOCAL™ OPTICS
FLIR engineered all new lenses for the new Exx-Series that are truly interchangeable, so you can auto-calibrate additional optics to your camera, or share optics between cameras.
QUICK, EASY REPORTING
From helpful image annotations, such as distance-to-target and target square area, to logical screen navigation and folder structures, the E95 streamlines reporting so you can spend less time on paperwork.
LASER-ASSISTED AUTOFOCUS AND AUTOMATIC DISTANCE & AREA CALCULATIONS
The E96’s laser distance meter provides the data needed for quick, precise autofocusing, so you can ensure spot-on focus and accurate temperature measurements, every time and also allows you to measure and record distance-to-target and to determine the square area of a target on-screen
STREAMLINED REPORTING
With customizable work folders, a built-in mic and speaker for voice annotation, and report generation features, the E96 makes your workday smarter and easier.
SLEEK BUT RUGGED
This new Exx-Series design is about more than good looks, with features such as scratch-resistant DragontrailTM glass and a magnesium chassis that’s durable enough to withstand a 2m drop
FLIR Exx Series Features
Quick, precise continuous focus
Laser-assisted autofocus responds instantly to movement, maintaining focus even in cluttered surroundings
Intuitive interface and navigation
Capacitive touch screen and convenient menu buttons make it easy to navigate and operate the camera with one hand
Clear view at any angle
Vivid 4″ LCD display with a 160° viewing angle helps you keep an eye on the thermal image as you work
Superior MSX® scene enhancement
Patented MSX® technology is now even better, thanks to a re-design that brings the visual and IR cameras closer together
High temperature calibration
Exx-Series cameras offer wide measurement ranges (-20°C to 120°C, 0°C to 650°C, and 300°C up to 1500°C)
Industry-leading 2-10 warranty
FLIR backs up the Exx-Series with the best warranty in the business, for battery, body, and detector

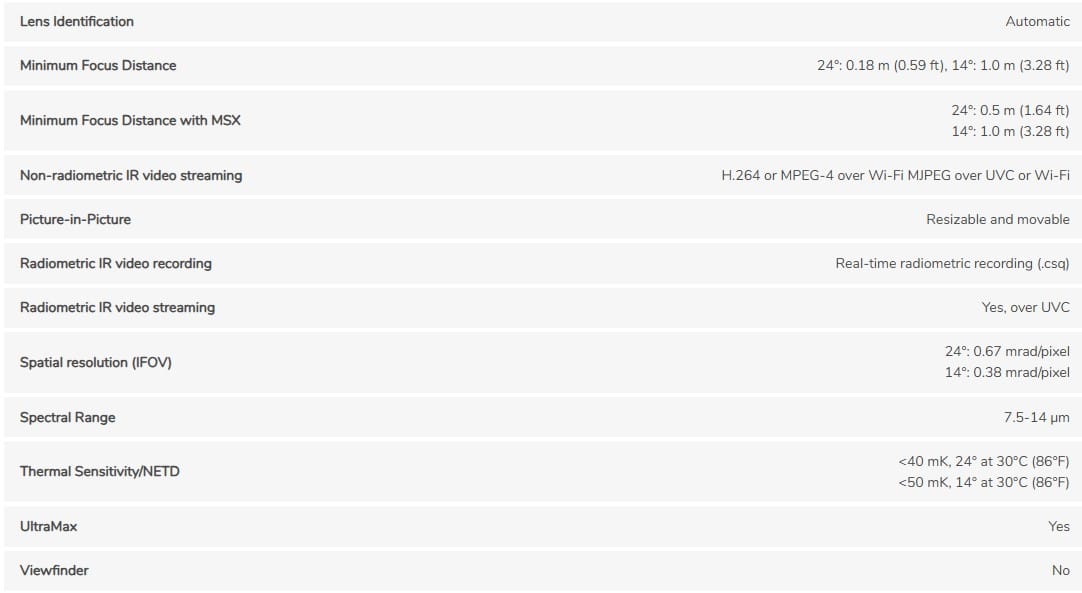

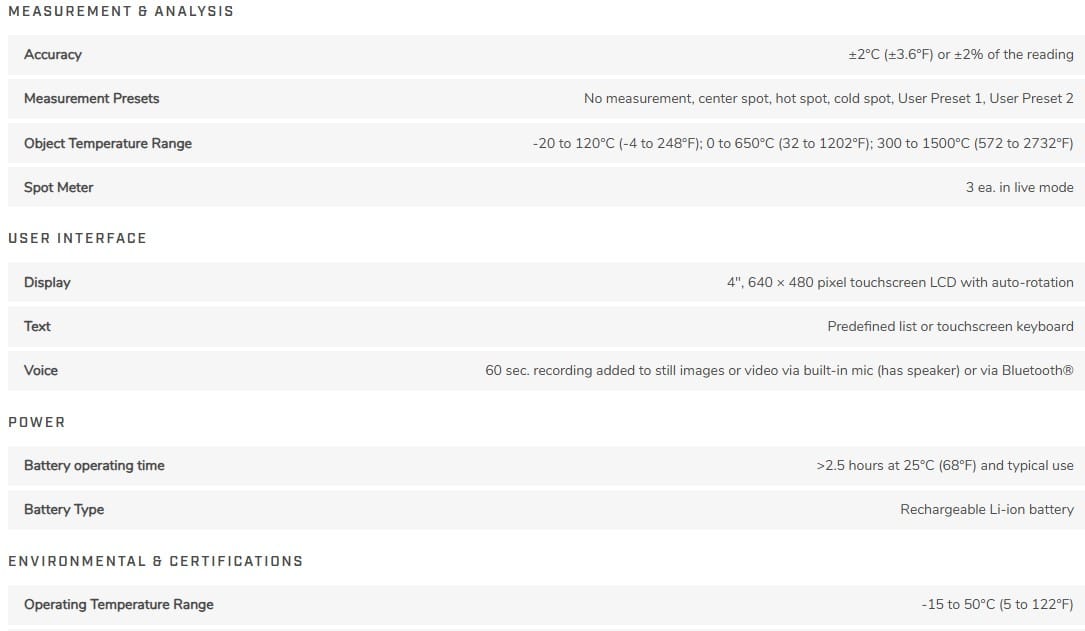

FLIR E96 SPECIFICATIONS
| IR Resolution | 640 x 480 (307,200 pixels) | ||
| Object Temperature Range | -20 to +120°C (-4 to 248°F) 0-650°C (32-1200°F) +300-1500°C (572-2732°F) |
||
| Detector Type and Pitch | Uncooled microbolometer, 17 µm | ||
| Thermal Sensitivity/NETD | <30mK | ||
| Spectral Range | 7.5 – 14.0 µm | ||
| Image Frequency | 30 Hz | ||
| Imaging and Optical Data | |||
|---|---|---|---|
| Field of View (FOV) | 42° x 32° (10 mm lens), 24° x 18° (18 mm lens), 14° x 10° (29 mm lens) | ||
| Focus Distance | Lens Dependent | ||
| Focus Length | Lens Dependent | ||
| F-Number | f/1.3 | ||
| Lens Identification | Automatic | ||
| Focus | Continuous Laser Distance Meter (LDM) One-shot laser distance meter (LDM) One-shot contrast Manual |
||
| Digital Zoom | 1-4x continuous | ||
Lens Descriptions
24° Lens — This multi-purpose 17mm lens with a 24° field of view allows you to fill the frame with an electrical target while maintaining a safe working distance, to inspect a ceiling, wall, attic, basement or crawl space quickly for thermal anomalies or identify insulation deficiencies quickly and non-destructively.
42° Lens — This 10mm lens with a 42° field of view is best suited for scanning walls, floors, and ceilings for air leaks, water damage, and other faults where space limitations may keep you closer to the target.
EXX-Series camera matrix New Oct 2020
