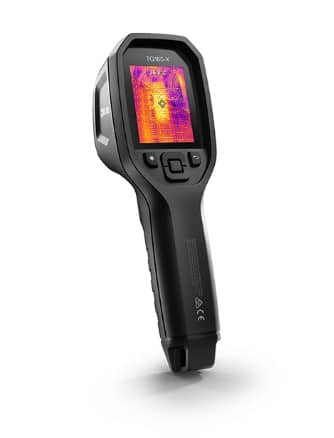

FLIR TG165-x Upgraded Spot Thermal Camera

Bridges the gap between single spot infrared thermometers and FLIR’s legendary thermal cameras

Categories: , SKU: TG165


The FLIR TG165-x Imaging IR Thermometer bridges the gap between single spot infrared thermometers and FLIR’s thermal cameras. Equipped with FLIR’s exclusive Lepton micro thermal sensor, the TG165-x lets you see the heat and measure it too. Easily finds unseen hot and cold spots for instant trouble shooting plus store images and data to show customers and also include in your reports.

The FLIR TG165-X helps you visualize the hot and cold spots that can indicate electrical faults, mechanical break-downs, or air and water leaks. This all-in-one, non-contact measurement and imaging tool displays temperature anomalies on screen, allowing you to inspect efficiently and pinpoint the source of problems faster than with a single-spot IR thermometer. See components clearly and even read labels thanks to FLIR patented MSX image enhancement, which adds visual details to full thermal images. The bullseye laser ensures you’re always targeting the right component for measurement while easy-to-use buttons and settings help you complete the job quickly and stress-free. With internal storage for up to 50,000 images and a rechargeable Li-ion battery, the FLIR TG165-X is ready to go right out of the box.

FLIR TG165-x Imaging IR Thermometer Key Features

1 True Thermal Detection

2 Portable, Ergonomic Design

3 Tripod Mount

4 Simple to Operate

5 Rugged and Reliable

6 Dual Laser Pointers

7 Convenient Pull Trigger

8 Store Images and Data.


IR Temperature Measurement
Basic Accuracy ±1.5% or 1.5°C
Range -25 to 300 °C (-13 to 572 °F)
Emissivity 4 Pre-Set Levels with Custom Adjustment, 0.1 to 0.99
Distance to Spot Ratio (D:S) 24:1
Measurement Resolution 0.1 °C / °F
Response Time 150 Milliseconds
Spectral Response 8 to 14 m
Lasers Dual Diverging Lasers, Frames Temp Measurement Area
Thermal Imaging
Detector FLIR Lepton Microbolometer Focal Plane Array (FPA)
Shutter Integrated Automatic Shutter
Image Resolution 4,800 Pixels (80 x 60)
Spectral Response 8 to 14 m
Field of view (H x W) 51° x 66°
Upper Scene Range 127 °C, 260 °F (400 K)
Thermal Imaging Sensitivity <70 mK
Frame Rate 9 Hz
Color Palettes 2 (Grey Scale, Hot Iron)
Saved Image Format Bitmap (BMP) Image with Temperature and Emissivity
General Specifications
Unit Size (H x W x D) 7.3 x 2.2 x 3.7 in (186 x 55 x 94 mm)
Display Type 2.0 inch TFT LCD
Display Resolution (W x H) 38,720 Pixels (176 x 220)
Battery 3.7 V, 2600 mAh Lithium-ion Battery, Rechargeable via Micro USB
Auto Power Off Yes, Adjustable with Disable
Battery Life Hours Typical Use: Five 8 Hr Work Days
Continuous Use: 8 Hrs
Certifications CE / CB / FCC / FDA
Memory 8Gb Micro SD Card
Operating Temperature -10 to 45 °C (14 to 113 °F)
Drop Test Designed for 2 Meter, 6.5 Feet
Tripod Mount 1/4 in – 20 on Handle Bottom
Warranty 2 Years Product, and 10 Years Thermal Imaging Detector
when registered within 60 days of purchase


TG165-X-Datasheet 2020
