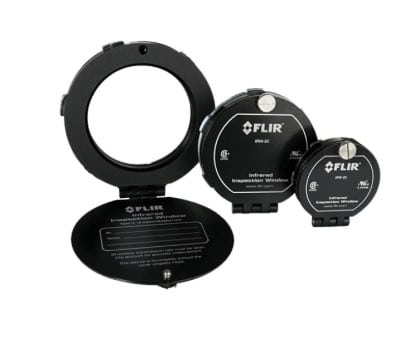

Flir IRW-2C IRW-Series IR Inspection Window. Opening electrical cabinets to perform IR and visual inspections of live components is dangerous work, exposing you to the risk of a hazardous arc flash incident. Out of necessity, it’s also a painstaking, time-consuming process.
Now you can put the added safety of new FLIR IR Window between you and energized equipment to better protect yourself and eliminate the need for opening enclosures. Much easier to install and use than other brands, FLIR IR Window helps you work faster with greater confidence. Perform inspections more efficiently and reduce the threat of arc flash injury significantly so you can get more done and stay in compliance with NFPA 70E requirements
- Safer Electrical Inspections
- Broadband Crystal Lens
- Easy PIRma-Lock Installation
- Quick Access Permanent Hinged Cover
- Compatible with All Thermal Cameras
All FLIR IR Windows feature a secure, permanently-hinged cover that opens easily with one hand, which means there’s nothing to remove, drop, mix up, or lose. FLIR’s broadband crystal allows cameras to capture visible light pictures as well as thermal images and lets LED and laser illumination pass straight through for clearer visual assessments.
Combine FLIR IR Windows with a FLIR thermal camera that features integrated visible light video, lamps, and a laser pointer, and you’ll be set to get the job done single-handedly.
FLIR IR WINDOWS
|Model Number||FLIR 2″ – IRW-2C||FLIR 3″ – IRW-3C||FLIR IR Window 4″ – IRW-4C|
|NEMA Environment Type||Type 4/12 (outdoor/indoor)|
|Maximum Operating Temperature||500°F/260°C|
|Crystal Insert Diameter||50mm (1.97″)||75mm (2.95″)||95mm (3.74″)|
|Viewing Aperture Diameter||45mm (1.77″)||69mm (2.71″)||89mm (3.50″)|
|Viewing Aperture Area||1590mm² (2.46in²)||3739mm² (5.79in²)||6221mm² (9.64in²)|
|Window Thickness||2mm (0.07″)|
|Optic Maximum Temperature||1355.6°C (2474°F)|
|Body Material||Anodized Aluminum or Stainless Steel AISI 316|
